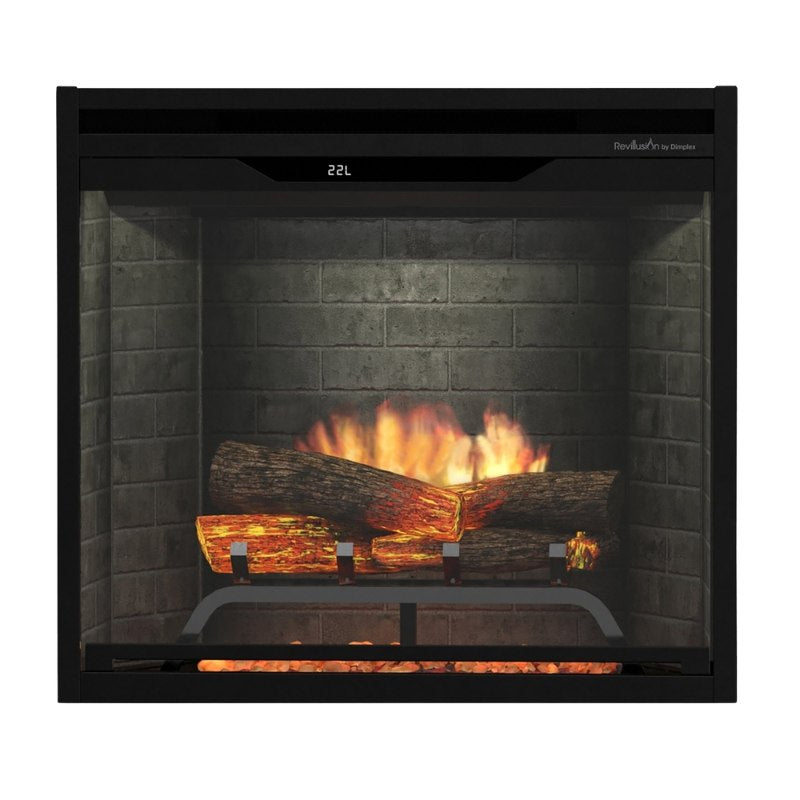

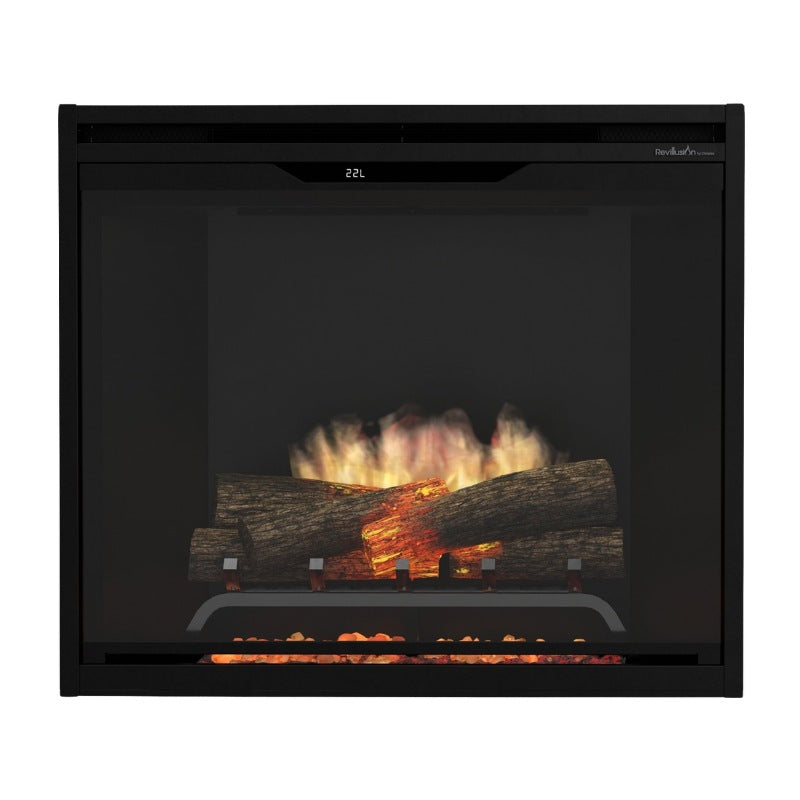

Dimplex Revillusion 30" Built-In Electric Fireplace
Email me this fireplace to review later
✔ In-stock orders leave the warehouse in 1–3 business days
✔ Free freight shipping, curbside. Free liftgate service included.
✔ Out of stock — ships in 8–10 weeks. You can still place your order today.
✔ Free freight shipping, curbside. Free liftgate service included. We email your confirmed timeline after you order.
✔ Manufacturer's Warranty Included
✔ 30-day returns · damaged items fully covered · see return policy
✔ Price match guarantee · see how it works
✔ Fireplace Specialists Available — Call or Email
Will it fit?
Check your space before you order
| Rough opening (framing) | 30-5/8" W × 26-3/16" H × 12-1/2" D |
| Firebox size | 31-1/8" W × 26-5/8" H × 12-1/8" D · 66.5 lb |
| Power | 120V plug-in (72" cord included) or hardwire at 208/240V · dedicated 15A circuit recommended |
| Heat output | 1,300 W at 120V · 2,575 W at 240V · flame runs with or without heat |
| Venting | None — no gas line, chimney or vent required |
| Corner install | Needs 54-1/4" across the corner and 38-1/2" along each wall |
| Clearances | Zero-clearance sides · insulation 2" above top · furniture 3 ft from front |
Not sure it fits? Send us your opening width, height and depth, and a specialist will confirm before you buy.
Source: Dimplex Revillusion Installation & User's Guide (2025)
Free sizing and wiring advicebefore you buy. Most questions answered same business day.
No sales tax outside Massachusetts
Orders shipping anywhere except MA pay zero sales tax — real savings on a purchase this size.
Dimplex Revillusion 30" Built-In Electric Fireplace
Description
Size Options: 30" | 36" | 36" Portrait | 42"
Compare all four sizes side by side — framing and corner dimensions →
Overview
The most compact Revillusion — same fire, smaller opening

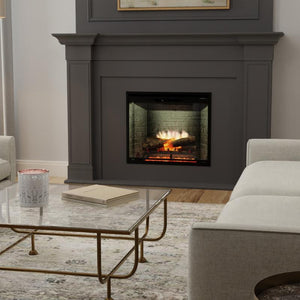

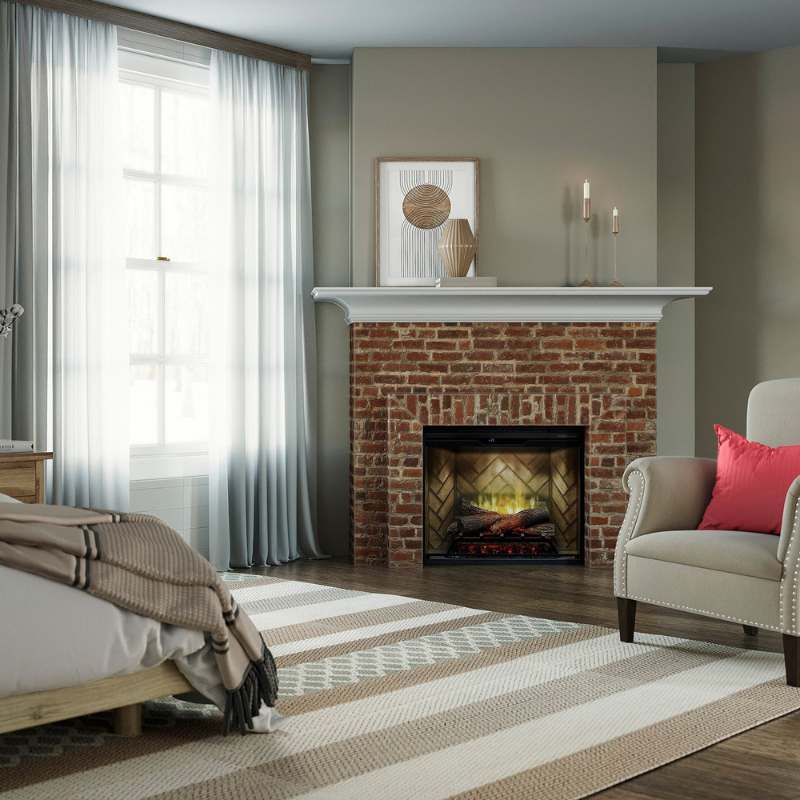

The Revillusion 30" suits smaller rooms, bedrooms and standard new-build framing. Revillusion™ technology glows the ember bed from the back of the firebox and a reflective flame panel makes the flames appear to rise from within the logs. Heat output is identical across every Revillusion size, so choosing the 30" costs you nothing in warmth.
Will it fit?

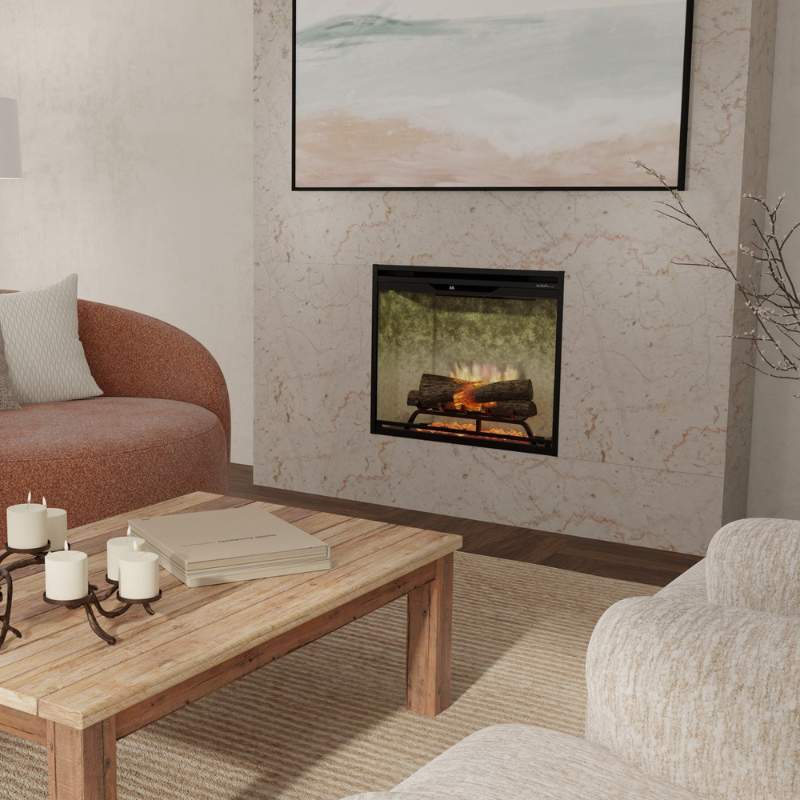

The Revillusion 30" is a built-in firebox, designed to be framed into a wall or enclosure. It needs no venting, gas line or chimney. Frame the opening to 30-5/8" wide x 26-3/16" high x 12-1/2" deep. Planning to use an existing fireplace opening? Send us its width, height and depth and we'll confirm whether it works before you order.
Standard Features
- —Revillusion™ flame technology — designed for a dimensional, realistic flame
- —Ember bed glows from the back of the firebox — true dimensional depth
- —Reflective flame panel — flames appear to rise from within the logs

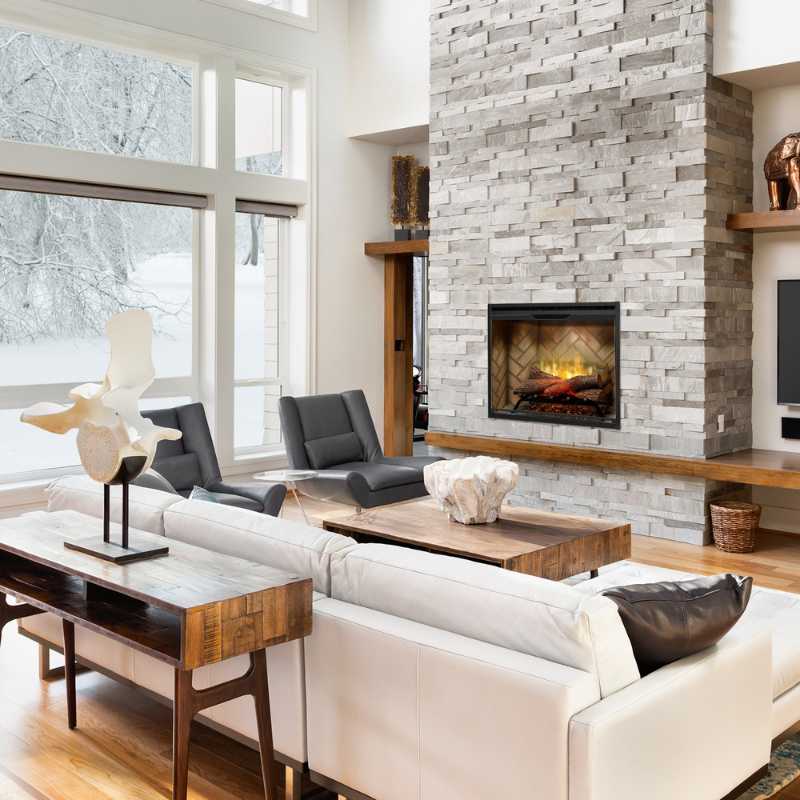

- —Built-in / recessed installation — front-facing or corner
- —120V plug-in (plug kit included) or hardwire at 208/240V for more heat
- —Supplemental heating — up to 400 sq ft, and the flame runs with the heat off
- —Remote control included
Specifications
| Flame Technology | Revillusion™ |
| Width | 30" |
| Rough Opening (framing) | 30-5/8 x 26-3/16 x 12-1/2 in |

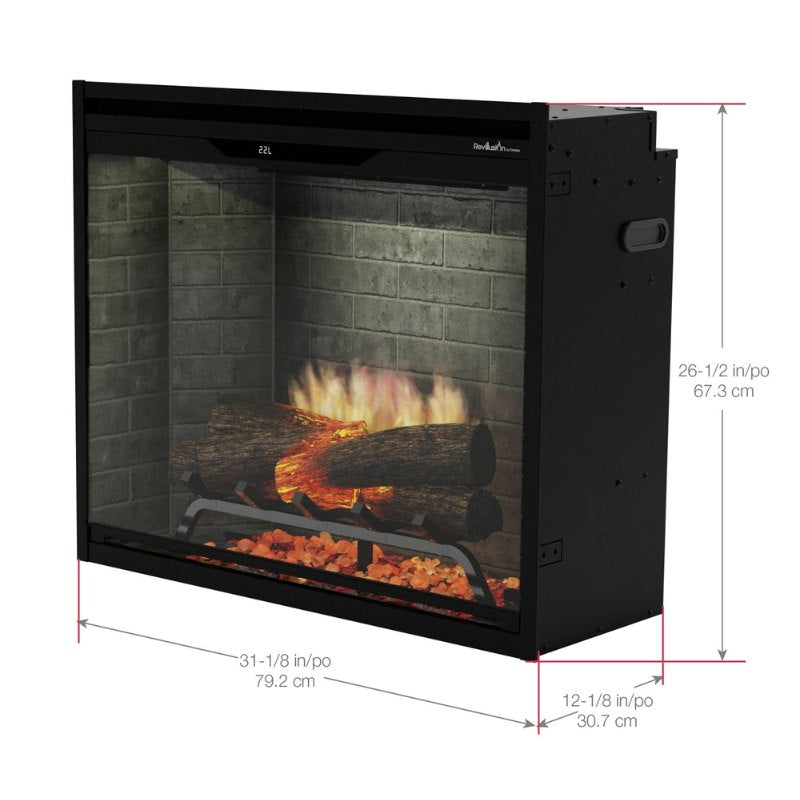

| Product Dimensions (W×H×D) | 31-1/8 x 26-5/8 x 12-1/8 in · 66.5 lb |
| Corner Install | 54-1/4" across the corner · 38-1/2" along each wall |
| Voltage | 120V plug-in (plug kit included) or hardwire at 208/240V for more heat |
| Heating Area | Up to 400 sq ft · 1,300W at 120V / 2,575W at 240V |
| Circuit | Dedicated 15 A circuit recommended |
| Venting | None — no gas line, chimney or vent required |
| Clearance | Zero clearance · keep insulation and vapor barrier 2" from the top |
| Use | Indoor only |
| Warranty | 2-Year Parts / 1-Year Service Limited Warranty |
| Installation | Built-In / Recessed |

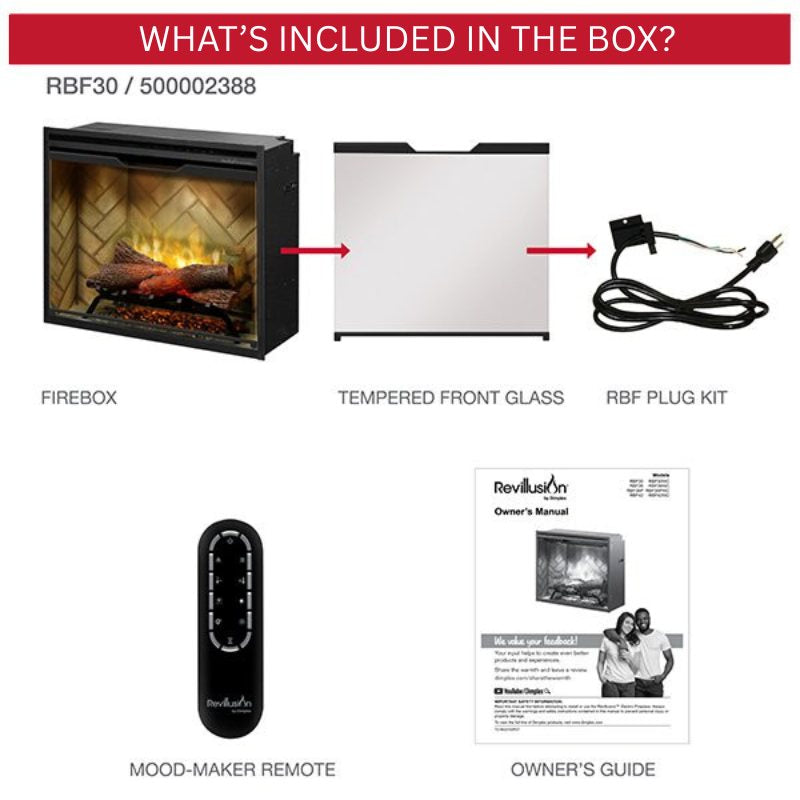

What's Included
- —Revillusion 30" firebox with your chosen interior panel
- —Front glass panel
- —Magnetic glass trim
- —Realogs® log set
- —Tumbled glass embers
- —120V plug kit
- —Remote control
- —2-year manufacturer's limited warranty
Not included / may be needed
- —Optional trim kit (sold separately)
- —Framing and wall finishing materials
- —A licensed electrician for 208/240V hardwire installations
