Dimplex Opti-Myst Pro 500 RGB Water Vapor Cassette
Description
Overview
A 20" vapor flame you build into anything — and link for any length

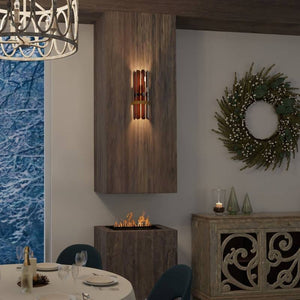

The Optimyst Cassette is a 20" firebox module rather than a finished fireplace. It drops into custom millwork, a see-through feature wall, a three-sided island or a bar front, and because ultrasonic mist and LED light make the flame, there's no gas line, flue or venting to plan around. Spacers and slots let you shape the flame width and pattern to the opening you've built.

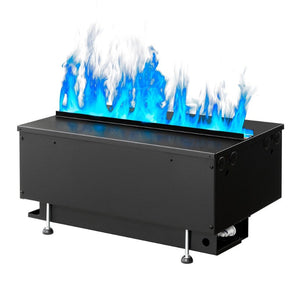

Combine cassettes for any length. Run several side by side for a long linear fire, with up to five controlled from a single remote. The RGB model adds five flame colors — orange, blue, violet, red and aquamarine — plus custom colors, intensity and crackling sound through the Flame Connect app.
This cassette does not produce heat. Its 230W draw runs the vapor system and lighting, and the flame is cool to the touch — which is why it can go in a bedroom, a bar top or joinery where a heater couldn't. If you want warmth from it, Dimplex makes a direct-wire heater accessory (CDFI-TMHEAT) rated for up to 400 sq ft; ask us and we'll quote it with your order.
Before you buy — three things to plan: the cassette is direct-wired to a 120V circuit (an optional plug kit lets it run from a standard outlet instead), it needs a fresh-air inlet below the unit, and the built-in tank gives about 8 hours of flame per fill. For continuous operation without refilling, add the plumbing kit and connect it to your water line.
What's included: the cassette, refillable water container, media tray, multi-function remote, slotted flame spacers and manual. Not included: ember bed or log media, air intake grille, plug kit, plumbing kit and heater accessory — ask us and we'll add what your design needs.
Standard Features
- —Optimyst® water-vapor flame and smoke effect — mist and LED light
- —5 flame colors (orange, blue, violet, red, aquamarine) plus custom colors via app
- —Modular — combine cassettes for custom lengths, up to 5 on one remote
- —Adjustable flame width and pattern using the included spacers and slots
- —Adjustable flame intensity and crackling wood sound
- —Flame Connect app and Bluetooth remote — save your own moods
- —Media tray accepts your choice of ember bed or optional inner-glow logs
- —Refillable tank — about 8 hours per fill; optional plumbing kit for continuous supply
- —Cool-touch flame, no venting, no gas line, no emissions
Specifications
| Flame Technology | Optimyst® RGB (water vapor + LED) |
| Model | CDFI500-PRO-RGB |
| Format | Built-in cassette — modular, linkable |
| Product Dimensions (W×H×D) | 20 x 9-1/2 x 12 in |
| Framing / Rough Opening | 20-3/8 x 14-1/4 x 9-1/2 in |
| Heat Output | None — flame effect only (optional heater accessory available) |
| Voltage / Wattage | 120V / 230W (3.83A) |
| Wiring | Direct wire (optional plug kit available) |
| Water | Refillable tank, approx. 8 hours per fill · optional plumbed supply |
| Ventilation | Fresh-air inlet required below the cassette |
| Weight | approx. 22 lbs |
| Installation | Built-in / drop-in — indoor use only |
Warranty terms vary by component — ask us and we'll send the current Dimplex terms and the installation manual before you order.
FREE Shipping on Every Order
Free curbside shipping on all orders. At around 22 lbs this one is easy to handle — no liftgate needed.
Why Buy From Us
- —Authorized Dimplex Dealer
- —Expert support before and after your purchase
- —Full manufacturer's warranty support
- —Secure checkout with multiple payment options including financing
Manuals & Resources
